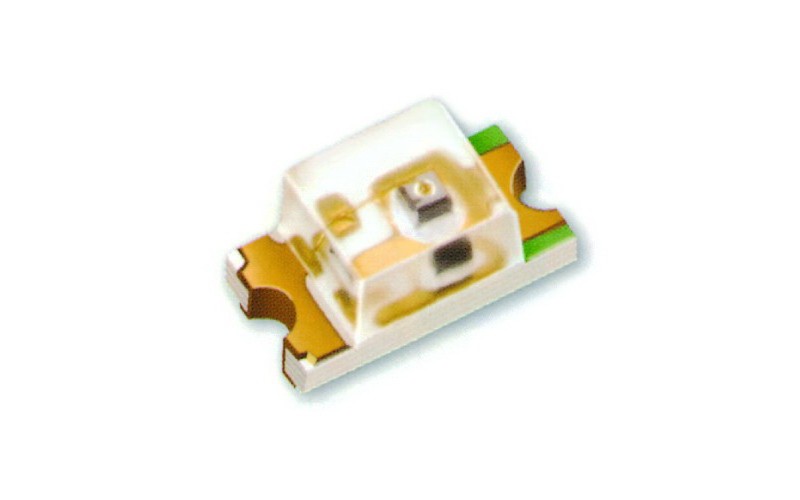

FV-S190 Series
0603 Size
0.8mm Height
| Part NO. | Material | Lens Color | Iv(mcd) | Viewing | λp | |
|---|---|---|---|---|---|---|
| Min. | Typ. | Angle | ||||
| FV-S190USR | AlGaInP | Water Clear | 36 | 50 | 130 | 625 |
| FV-S190UOY | AlGaInP | 45 | 60 | 130 | 605 | |
| FV-S190UY | AlGaInP | 45 | 70 | 130 | 592 | |
| FV-S190UYG | AlGaInP | 28 | 40 | 130 | 574 | |
| FV-S190LG | InGaN | 115 | 200 | 130 | 530 | |
| FV-S190NB | InGaN | 36 | 50 | 130 | 472 |
FV-S191 Series
0603 Size
0.6mm Height
| Part NO. | Material | Lens Color | Iv(mcd) | Viewing | λp | |
|---|---|---|---|---|---|---|
| Min. | Typ. | Angle | ||||
| FV-S1914R11 | AlGaInP | Water Clear | 36 | 65 | 130 | 626 |
| FV-S191US0 | AlGaInP | 45 | 50 | 130 | 605 | |
| FV-S1914Y11 | AlGaInP | 34 | 45 | 130 | 589 | |
| FV-S1914C71 | AlGaInP | 7 | 12 | 130 | 572 | |
| FV-S1911G31 | InGaN | 220 | 280 | 130 | 530 | |
| FV-S1911B81 | InGaN | 65 | 75 | 130 | 468 |
FV-S170 Series
0805 Size
0.8mm Height
| Part NO. | Material | Lens Color | Iv(mcd) | Viewing | λp | |
|---|---|---|---|---|---|---|
| Min. | Typ. | Angle | ||||
| FV-S1704R11 | AlGaInP | Water Clear | 30 | 65 | 130 | 626 |
| FV-S170UOY | AlGaInP | 90 | 120 | 130 | 606 | |
| FV-S1704Y11 | AlGaInP | 30 | 45 | 130 | 589 | |
| FV-S1704C71 | GaP | 25 | 35 | 130 | 573 | |
| FV-S1701G31 | InGaN | 220 | 250 | 130 | 524 | |
| FV-S1701B81 | InGaN | 65 | 80 | 130 | 468 |
FV-S171 Series
0805 Size
1.1mm Height
| Part NO. | Material | Lens Color | Iv(mcd) | Viewing | λp | |
|---|---|---|---|---|---|---|
| Min. | Typ. | Angle | ||||
| FV-S171USR | AlGaInP | Water Clear | 72 | 90 | 130 | 630 |
| FV-S171UOY | AlGaInP | 90 | 120 | 130 | 606 | |
| FV-S171UY | AlGaInP | 57 | 77 | 130 | 595 | |
| FV-S171UYG | AlGaInP | 36 | 45 | 130 | 574 | |
| FV-S171LG | InGaN | 115 | 200 | 130 | 530 | |
| FV-S171NB | InGaN | 36 | 55 | 130 | 468 |
FV-S150 Series
1206 Size
0.8mm Height
| Part NO. | Material | Lens Color | Iv(mcd) | Viewing | λp | |
|---|---|---|---|---|---|---|
| Min. | Typ. | Angle | ||||
| FV-S1504R11 | AlGaInP | Water Clear | 28 | 40 | 130 | 627 |
| FV-S150UOY | AlGaInP | 45 | 72 | 130 | 606 | |
| FV-S1504Y11 | AlGaInP | 28 | 45 | 130 | 589 | |
| FV-S1504C71 | AIGaInP | 28 | 35 | 130 | 573 | |
| FV-S1501G31 | InGaN | 220 | 250 | 130 | 524 | |
| FV-S1501B81 | InGaN | 70 | 85 | 130 | 468 |
FV-S151 Series
1206 Size
1.1mm Height
| Part NO. | Material | Lens Color | Iv(mcd) | Viewing | λp | |
|---|---|---|---|---|---|---|
| Min. | Typ. | Angle | ||||
| FV-S151USR | AlGaInP | Water Clear | 45 | 70 | 130 | 645 |
| FV-S151UOY | AlGaInP | 45 | 72 | 130 | 606 | |
| FV-S151UY | AlGaInP | 57 | 77 | 130 | 592 | |
| FV-S151UYG | AlGaInP | 28 | 40 | 130 | 574 | |
| FV-S151LG | InGaN | 90 | 135 | 130 | 530 | |
| FV-S151NB | InGaN | 36 | 55 | 130 | 468 |
