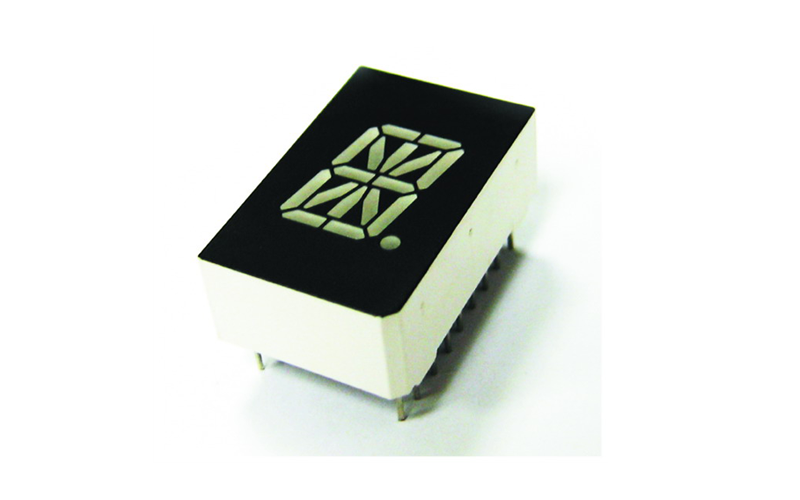

ALPHANUMERIC DISPLAY

0.5″
SINGLE DIGIT

Part Number		Chip		Absolute Maximum Ratings				Electro-optical Data
								(At 10mA)
Common Anode	Common Cathode	Emitting	Peak W.L	λP (nm)	Pd (nm)	If	If	Vf		Iv
		Color	λP (nm)			(nm)	Peak	(V)		(ucd)
								Typ.	Max.	Typ.
KWA-501A5	KWA-501C5	Bright Red	700	90	45	15	50	2.2	2.8	550
KWA-501A3	KWA-501C3	Hi.effi Red	635	45	100	30	160	2.1	2.8	1800
KWA-501AG	KWA-501CG	Green	568	30	100	30	160	2.2	2.8	1600
KWA-501AY	KWA-501CY	Yellow	585	30	100	30	160	2.1	2.8	1500
KWA-501AS	KWA-501CS	SuperRed	660	20	60	20	160	1.8	2.4	5000
KWA-501AB	KWA-501CB	Blue	470	30	100	20	160	3.5	4.2	12000

0.8″
SINGLE DIGIT

Part Number		Chip		Absolute Maximum Ratings				Electro-optical Data
								(At 10mA)
Common Anode	Common Cathode	Emitting	Peak W.L	λP (nm)	Pd (nm)	If	If	Vf		Iv
		Color	λP (nm)			(nm)	Peak	(V)		(ucd)
								Typ.	Max.	Typ.
KWA-801A5	KWA-801C5	Bright Red	700	90	45	15	50	2.2	2.8	550
KWA-801A3	KWA-801C3	Hi.effi Red	635	45	100	30	160	2.1	2.8	1800
KWA-801AG	KWA-801CG	Green	568	30	100	30	160	2.2	2.8	1600
KWA-801AY	KWA-801CY	Yellow	585	30	100	30	160	2.1	2.8	1500
KWA-801AS	KWA-801CS	SuperRed	660	20	60	20	160	1.8	2.4	5000
KWA-801AB	KWA-801CB	Blue	470	30	100	20	160	3.5	4.2	12000

1.0″
SINGLE DIGIT

Part Number		Chip		Absolute Maximum Ratings				Electro-optical Data
								(At 10mA)
Common Anode	Common Cathode	Emitting	Peak W.L	λP (nm)	Pd (nm)	If	If	Vf		Iv
		Color	λP (nm)			(nm)	Peak	(V)		(ucd)
								Typ.	Max.	Typ.
KWA-1001A5	KWA-1001C5	Bright Red	700	90	45	15	50	2.2	2.8	550
KWA-1001A3	KWA-1001C3	Hi.effi Red	635	45	100	30	160	2.1	2.8	1800
KWA-1001AG	KWA-1001CG	Green	568	30	100	30	160	2.2	2.8	1600
KWA-1001AY	KWA-1001CY	Yellow	585	30	100	30	160	2.1	2.8	1500
KWA-1001AS	KWA-1001CS	SuperRed	660	20	60	20	160	1.8	2.4	5000
KWA-1001AB	KWA-1001CB	Blue	470	30	100	20	160	3.5	4.2	12000

1.2″
SINGLE DIGIT

Part Number		Chip		Absolute Maximum Ratings				Electro-optical Data
								(At 10mA)
Common Anode	Common Cathode	Emitting	Peak W.L	λP (nm)	Pd (nm)	If	If	Vf		Iv
		Color	λP (nm)			(nm)	Peak	(V)		(ucd)
								Typ.	Max.	Typ.
KWA-1201A5	KWA-1201C5	Bright Red	700	90	45	15	50	2.2	2.8	550
KWA-1201A3	KWA-1201C3	Hi.effi Red	635	45	100	30	160	2.1	2.8	1800
KWA-1201AG	KWA-1201CG	Green	568	30	100	30	160	2.2	2.8	1600
KWA-1201AY	KWA-1201CY	Yellow	585	30	100	30	160	2.1	2.8	1500
KWA-1201AS	KWA-1201CS	SuperRed	660	20	60	20	160	1.8	2.4	5000
KWA-1201AB	KWA-1201CB	Blue	470	30	100	20	160	3.5	4.2	12000

KWE-401X
SERIES

Part Number		Chip		Absolute Maximum Ratings				Electro-optical Data
								(At 10mA)
Common Anode	Common Cathode	Emitting	Peak W.L	λP (nm)	Pd (nm)	If	If	Vf		Iv
		Color	λP (nm)			(nm)	Peak	(V)		(ucd)
								Typ.	Max.	Typ.
KWE-401A5	KWE-401C5	Bright Red	700	90	45	15	50	2.2	2.8	550
KWE-401A3	KWE-401C3	Hi.effi Red	635	45	100	30	160	2.1	2.8	1800
KWE-401AG	KWE-401CG	Green	568	30	100	30	160	2.2	2.8	1600
KWE-401AY	KWE-401CY	Yellow	585	30	100	30	160	2.1	2.8	1500
KWE-401AS	KWE-401CS	SuperRed	660	20	60	20	160	1.8	2.4	5000
KWE-401AB	KWE-401CB	Blue	470	30	100	20	160	3.5	4.2	12000

KWE-502X
SERIES

Part Number		Chip		Absolute Maximum Ratings				Electro-optical Data
								(At 10mA)
Common Anode	Common Cathode	Emitting	Peak W.L	λP (nm)	Pd (nm)	If	If	Vf		Iv
		Color	λP (nm)			(nm)	Peak	(V)		(ucd)
								Typ.	Max.	Typ.
KWE-502A5	KWE-502C5	Bright Red	700	90	45	15	50	2.2	2.8	550
KWE-502A3	KWE-502C3	Hi.effi Red	635	45	100	30	160	2.1	2.8	1800
KWE-502AG	KWE-502CG	Green	568	30	100	30	160	2.2	2.8	1600
KWE-502AY	KWE-502CY	Yellow	585	30	100	30	160	2.1	2.8	1500
KWE-502AS	KWE-502CS	SuperRed	660	20	60	20	160	1.8	2.4	5000
KWE-502AB	KWE-502CB	Blue	470	30	100	20	160	3.5	4.2	12000

KWT-541AX
SERIES

Part Number		Chip		Absolute Maximum Ratings				Electro-optical Data
								(At 10mA)
Common Anode	Common Cathode	Emitting	Peak W.L	λP (nm)	Pd (nm)	If	If	Vf		Iv
		Color	λP (nm)			(nm)	Peak	(V)		(ucd)
								Typ.	Max.	Typ.
KWT-541A5	KWT-541C5	Bright Red	700	90	45	15	50	2.2	2.8	550
KWT-541A3	KWT-541C3	Hi.effi Red	635	45	100	30	160	2.1	2.8	1800
KWT-541AG	KWT-541CG	Green	568	30	100	30	160	2.2	2.8	1600
KWT-541AY	KWT-541CY	Yellow	585	30	100	30	160	2.1	2.8	1500
KWT-541AS	KWT-541CS	SuperRed	660	20	60	20	160	1.8	2.4	5000
KWT-541AB	KWT-541CB	Blue	470	30	100	20	160	3.5	4.2	12000
