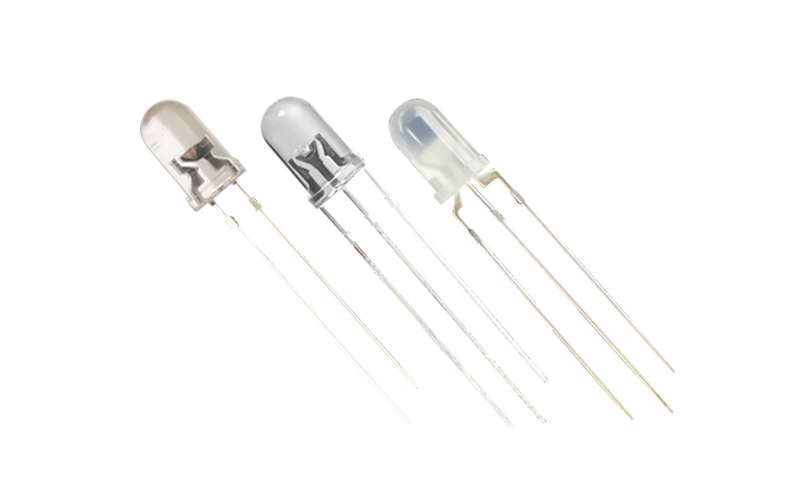

5mm BI-COLOR LED LAMP
( 2，3 Pin )

Part NO.	Material	Lens Color	Iv(mcd)		Viewing Angle	λp	Remark
			Min.	Typ.
LL-503SGM2E-001	AlGaAs	White Diffused	23	60	50	660	2 Pin
	GaP		23	60	50	564
LL-503SGC2E-001	AlGaAs	Water Clear	140	300	15	660	2 Pin
	GaP		140	300	15	568
LL-509IGM2E-007	GaAsP	White Diffused	13	30	60	640	(C，C)
	GaP		15	32	60	568
LL-509IGM2E-008	GaAsP		0.8	4	60	644	(C，A)
	GaP		1	6	60	568
LL-509SGM2E-004	AlGaAs		30	65	60	660	(C，A)
	GaP		25	50	60	568
LL-509VGM2E-005	AlGaInP		100	200	80	632	(C，C)
	GaP		20	44	80	568
LL-509VGM2E-006	AlGaInP		120	240	70	632	(C，C)
	GaP		50	120	70	576
LL-509YGM2E-003	GaAsP		0.6	2.5	60	588	(C，A)
	GaP		1	4.2	60	568
LL-509YGM2E-007	GaAsP		11	25	60	588	(C，C)
	GaP		18	40	60	568
LL-509UZM2E-002	AlGaAs		200	450	40	660	(C，C)
	InGaN		300	650	40	525
LL-509BZM2E-001	InGaN		300	640	39	468	(C，C)
	InGaN		800	1650	39	525
LL-509SGC2E-002	AlGaAs	Water Clear	60	150	25	660	(C，A)
	GaP		60	150	25	568
LL-509VGC2E-013	AlGaInP		490	1000	25	632	(C，C)
	GaP		280	600	25	576
LL-509YGC2E-009	GaAsP		28	63	15	588	(C，C)
	GaP		94	140	15	568
LL-509ABC2E-003	AlGaInP		280	650	30	612	(C，C)
	InGaN		200	450	30	470
LL-509VBC2E-002	AlGaInP		250	800	30	630	(C，C)
	InGaN		150	500	30	468
LL-509BYC2E-004	InGaN		500	1000	25	468	(C，C)
	AlGaInP		500	1100	25	590
LL-509BGC2E-001	InGaN		200	600	22	468	(C，A)
	GaP		40	120	22	568
LL-509UZC2E-003	AlGaAs		300	700	25	660	(C，C)
	InGaN		1700	3500	25	525
