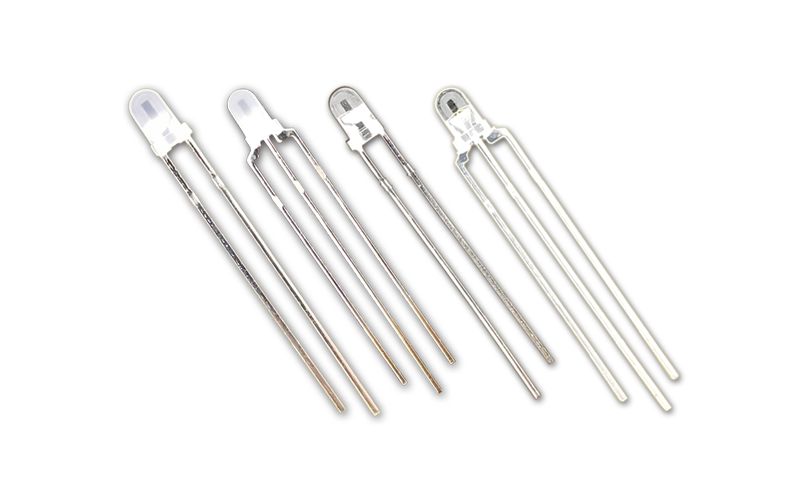

3mm BI-COLOR LED LAMP
( 2，3 Pin )

Part NO.	Material	Lens Color	Iv(mcd)		Viewing Angle	λp	Remark
			Min.	Typ.
LL-304SGM2E-001	AlGaAs	White Diffused	20	40	60	660	2 Pin
	GaP		23	65	60	568
LL-304SGC2A-004	AlGaAs	Water Clear	160	350	32	660	2 Pin
	GaP		90	190	32	568
LL-309HGM2E-007	GaP	White Diffused	1	3	70	700	(C，C)
	GaP		10	25	70	568
LL-309IGM2E-001	GaAsP	White Diffused	1	4	95	640	(C，A)
	GaP		2	6	95	568
LL-309IGM2E-003	GaAsP	White Diffused	10	24	98	644	(C，C)
	GaP		13	30	98	568
LL-309SGM2A-001	AlGaAs	White Diffused	20	60	90	660	(C，C)
	GaP		10	30	90	564
LL-309SGM2E-004	AlGaAs	White Diffused	10	25	80	660	(C，A)
	GaP		10	25	80	568
LL-309VGM2E-009	AlGaInP	White Diffused	50	100	65	660	(C，C)
	GaP		20	50	65	568
LL-309YGM2E-001	GaAsP	White Diffused	8	17	98	588	(C，C)
	GaP		10	22	98	568
LL-309YGM2E-003	GaAsP	White Diffused	0.7	4	95	588	(C，A)
	GaP		1	6	95	568
LL-309ABM2E-001	AlGaInP	White Diffused	50	110	105	605	(C，C)
	InGaN		70	160	105	468
LL-309AZM2E-001	AlGaInP	White Diffused	50	110	105	605	(C，C)
	InGaN		140	300	105	525
LL-309BYM2C-001	InGaN	White Diffused	120	250	75	468	(C，C)
	GaAsP		200	400	75	595
LL-309BYM2E-001	InGaN	White Diffused	30	70	90	468	(C，C)
	GaAsP		90	200	90	596
LL-309VBM2E-003	AlGaInP	White Diffused	42	94	100	630	(C，C)
	InGaN		63	140	100	468
LL-309SGC2E-001	AlGaAs	Water Clear	63	140	30	660	(C，A)
	GaP		30	70	30	568
LL-309YGC3Q-001	GaAsP	Water Clear	6	14	130	588	(C，A)
	GaP		14	30	130	588
LL-309UBC2E-001	AlGaAs	Water Clear	60	220	42	652	(C，A)
	InGaN		60	240	42	468
LL-309UZC2E-001	AlGaAs	Water Clear	70	150	35	660	(C，A)
	InGaN		1200	2500	35	525
